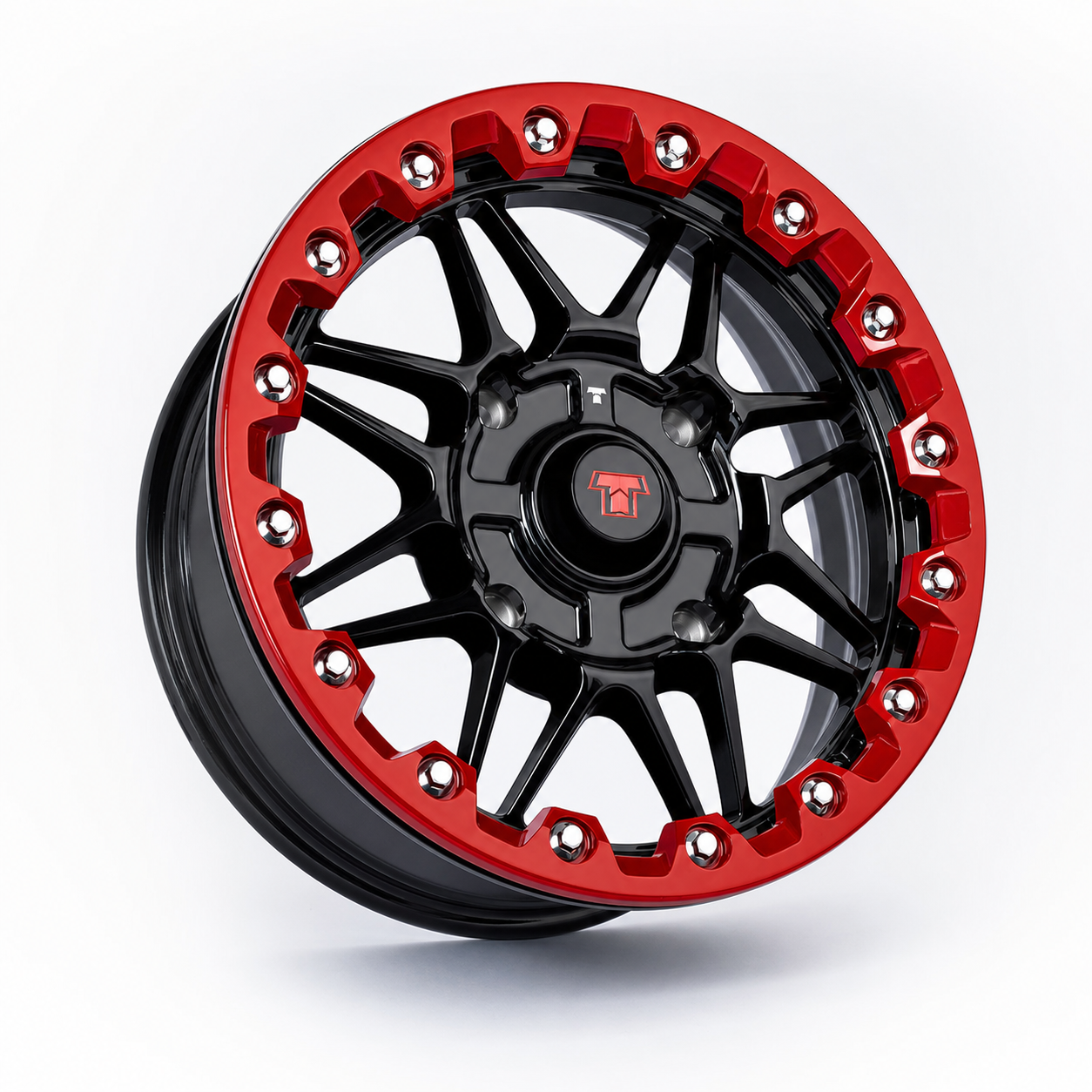

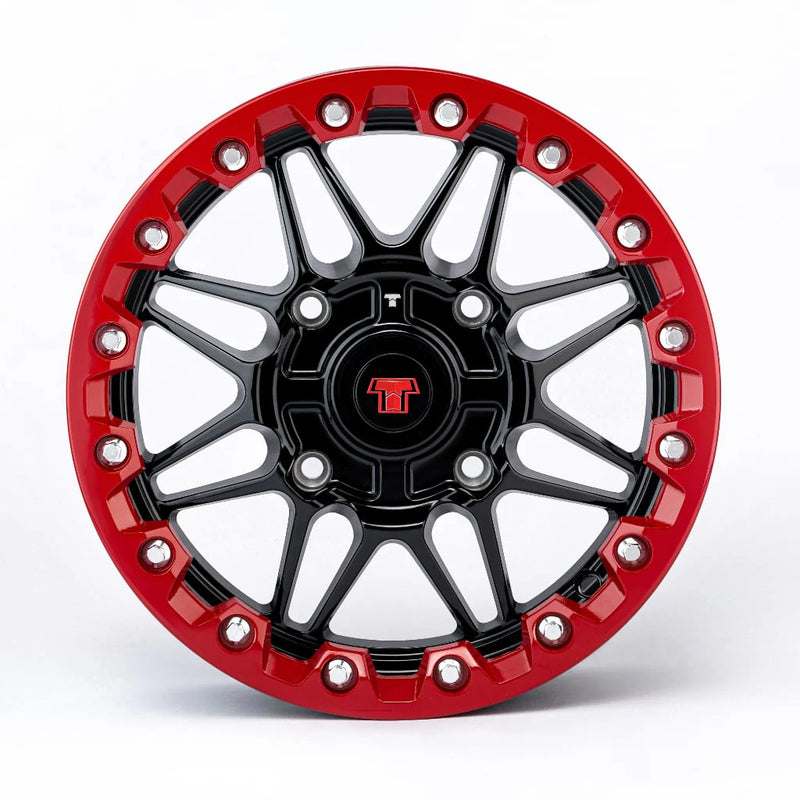

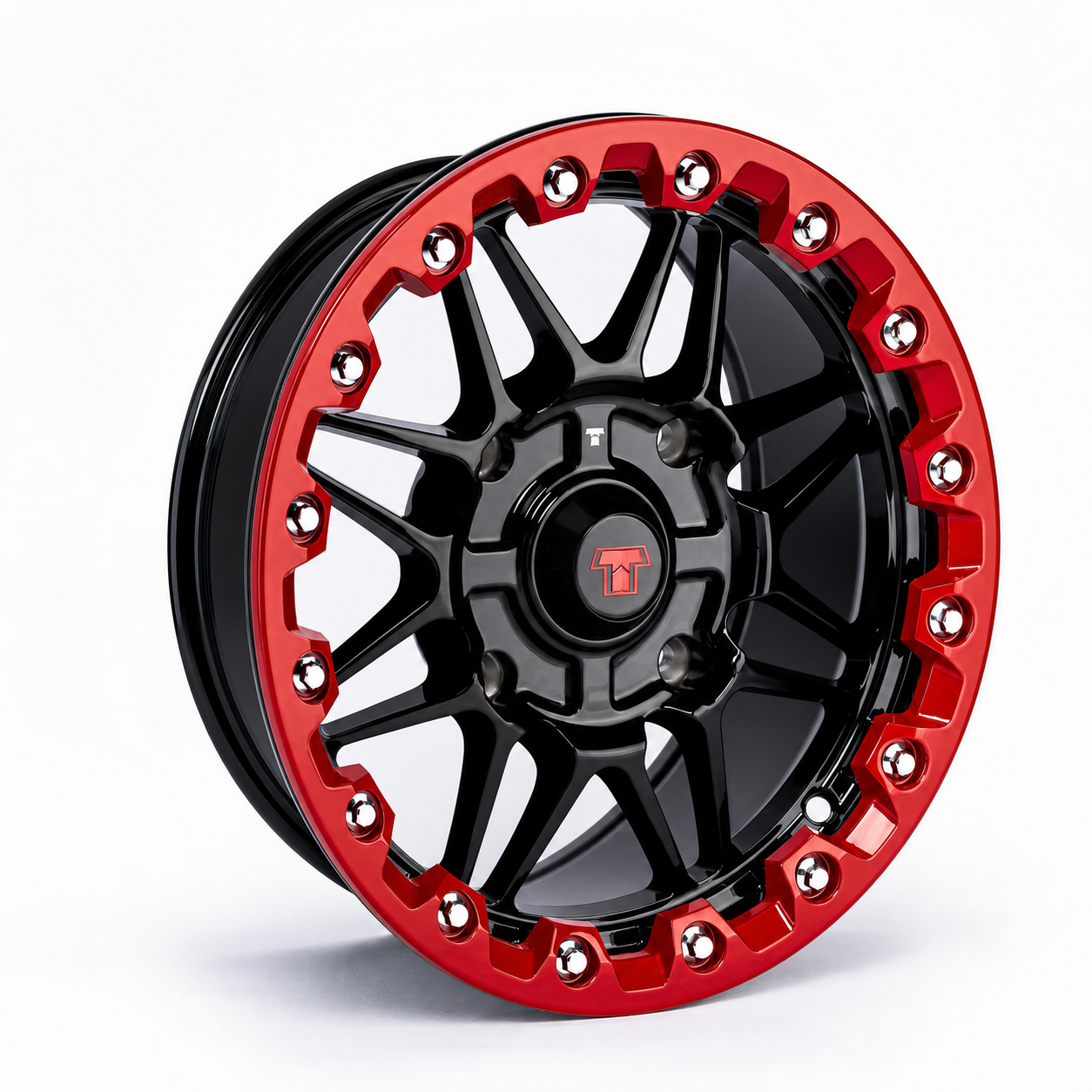

The Terache 14x5 Beadlock Wheel is a narrow mud wheel built for riders who need maximum control, traction, and stability in ultra-deep mud, water crossings, and extreme off-road conditions.
- Narrower wheel significantly reduces flotation for improved stability
- By pulling the tire beads inward, the 14x5 beadlock wheel can also help improve side lug bite
- True beadlock design secures the tire bead when running low PSI
- 4/137 bolt pattern, ET10 offset makes these an excellent upgrade for Can-Am, Honda UTVs
- Can be fit to Honda ATV's when used with our custom Terache wheel adapters
Important Fitment Note:
Lug nuts and valve stems are not included. Uses standard 0.453-inch valve stems. Some OEM lug nuts may be too large for these wheels. ATVs and UTVs with M10x1.25 wheel studs should use 14mm hex lug nuts. Side-by-sides with M12x1.5 studs should use spline lug nuts. Always verify bolt pattern, stud size, offset, center bore, tire size, and vehicle clearance before installation. Apply anti-seize and torque beadlock ring bolts to 15 ft-lb. Torque lug nuts to OEM spec. These wheels will fit machines with 4/136 or 4/137 lug patten. Center bore is 85mm.
