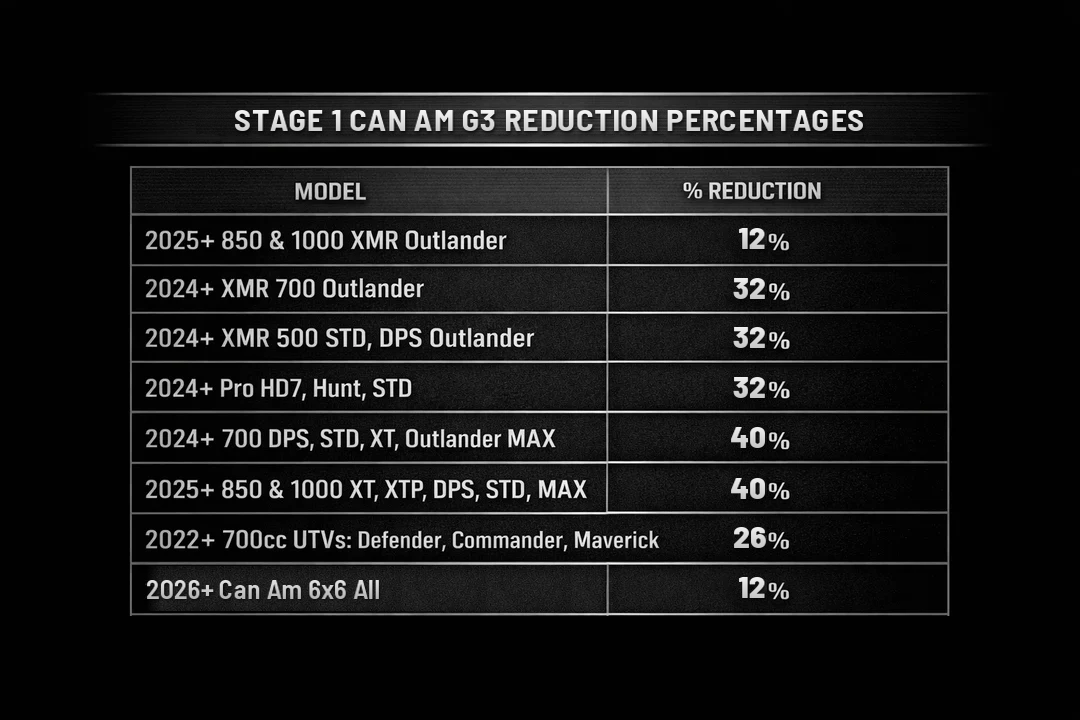

The Terache G3 Stage 1 Reduction offers a milder gear reduction than our original G3 reduction (Stage 2). On the 850/1000 XMR, Stage 1 delivers roughly a 12% reduction (see the chart for other models). It's the ideal choice for riders running an aggressive tire that's closer to factory height (within 1-2 inches true hight). Stage 1 also has less impact on top speed in both high and low range.
Oversized tires significantly reduce torque, throttle response, and overall drivability. They also increase load on the belt, clutches, and reverse chain, which can lead to increased heat, wear, and inefficiency. Lowering the gear ratio after sensitive drive train components is the best way to correct for oversized tires.
- True drop-in installation into the easily accessible gearbox side cover
- Zero grinding, machining, or case modifications required

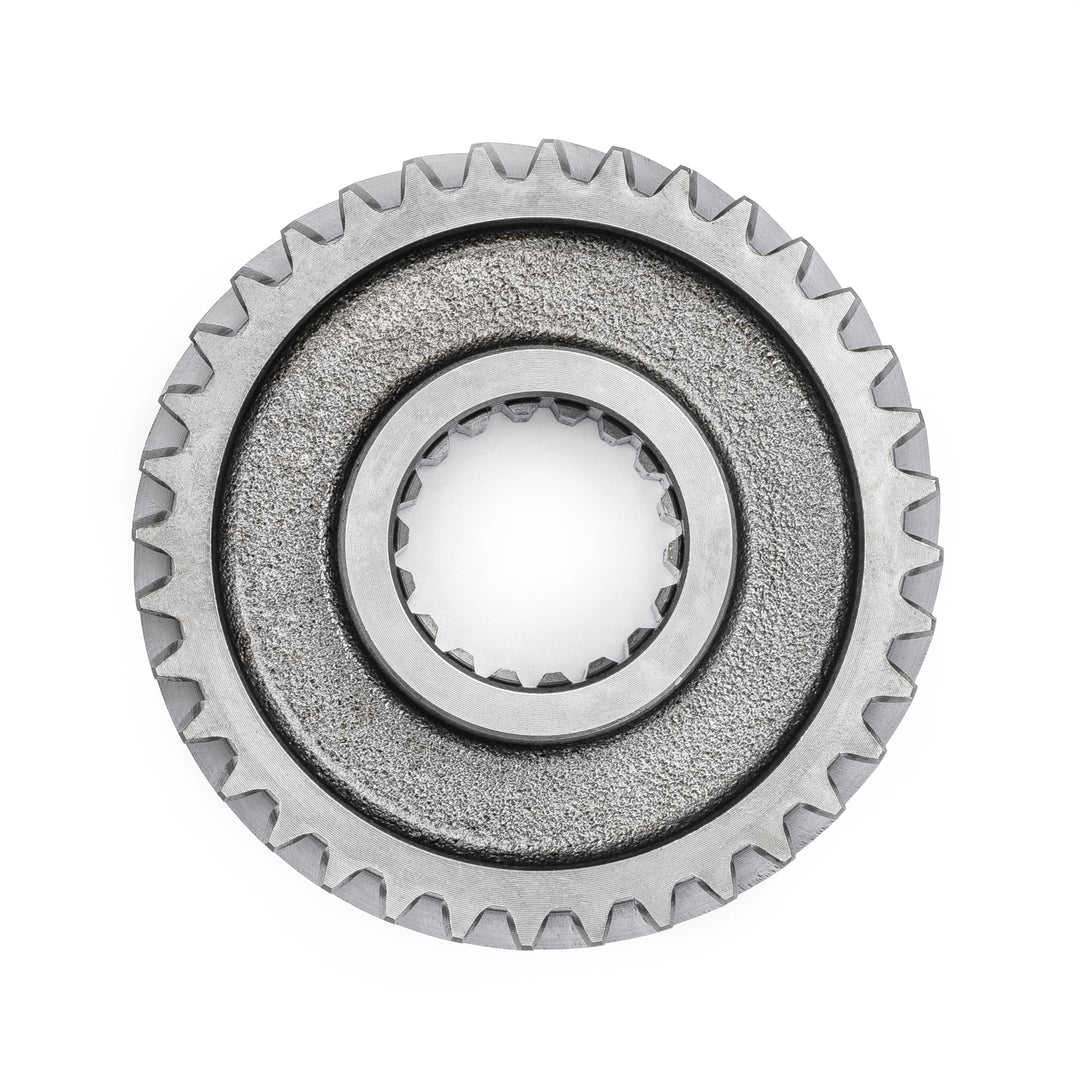

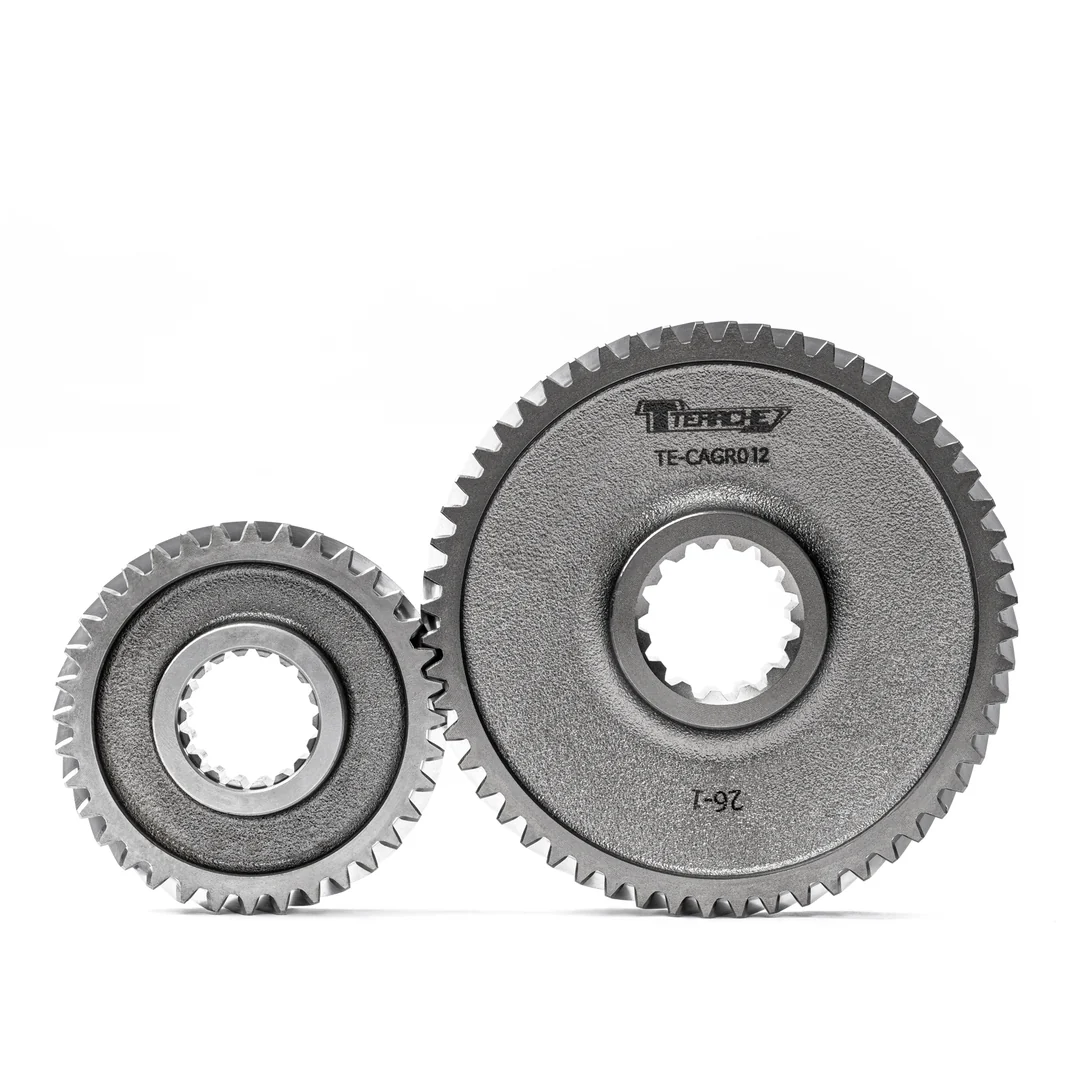

- Chromoly forged and heat treated gear set
- Delivers a lower gear ratio across High, Low, and Reverse
Riders love the torque off the line in high gear!
Fitment:
Compatible with all Gen 3 Can-Am Outlanders, 700 UTVs, and 6x6 models using the G3 transmission platform. (See chart in photos)
Direct Replacement
Replaces OEM part numbers 420235763 and 420235761.
Non-XMR G3 models use different OEM part numbers but are also compatible with this kit.
